Compatibility of V2252701 with Cosmic Pro Carbon SL CR60764680
Hi,
Can you clarify whether the ID360 Insert Lobe Kit (V2252701) is compatible with this wheel ?

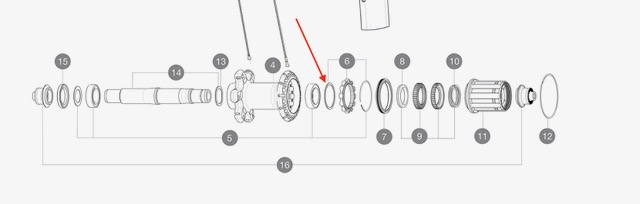

I am seeking clarification because the exploded diagram , shown below shows a complete circular spacer in place next to the drive side wheel bearing (pointed to by red arrow)

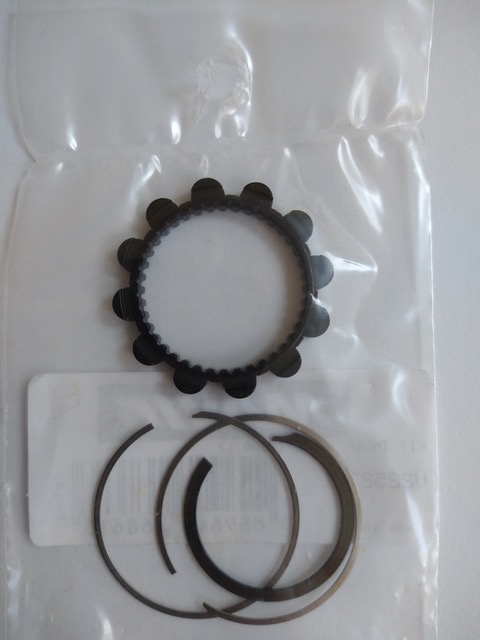

The V2252701 kit that I have does not include such a part, it only includes two types of split retaining rings (silver and black). See photo.
If the V2252701 kit is correct for this wheel, which part should be used, is it the black split ring ?
thanks
Wayne
Hi Wayne,
Yeah good question….
The answer is that one of the silver retaining rings sits on top of the lobe (ie. to the right of it if viewing the tech diagram). The black retaining ring should sit between the lobe and the wheel bearing (ie. where your arrow points)
Hope that’s clear
thanks
great, thanks
